LOG levels of detail in BIM: Understanding the graphics of a 3D model
As part of our 3D scanning of existing buildingsOur main focus is on LOG (Level of Geometry)in other words geometric representation of architectural elements in a 3D model.
In a context where precision is essential at every stage of a project, the LOG plays a strategic role. It defines the degree of graphic detail necessary to make effective use of a 3D model without making it unnecessarily cumbersome. Understanding this concept will enable architects, engineers and project owners to choosing the right level of modelling according to their objectives: preliminary study, survey, renovation or heritage monitoring. This hierarchical approach ensures that each element modelled is relevant to the project, while optimising resources and ensuring perfect compatibility with design and management tools.
At 3D Scan Bat, we use the LOG as a guideline for adapting our deliverables to the real needs of our customers. This hierarchical approach enables us to strike the right balance between geometric precision and file performance. Whether it's a simple preliminary design sketch or a complex heritage renovation, we calibrate the level of graphic detail to avoid unnecessary overload while guaranteeing optimum fidelity to the existing building. This pragmatic approach is the fruit of our daily experience in the field, working with architects, engineers and building managers.
Unlike acronyms LOD (Level of Development) or LOI (Level of Information)the LOG does not concern that geometry shape, proportion, position in space, level of complexity.
It does not contain any material data or physical or technical properties, except for specific request.
For more details, visit LOD and LOI on our dedicated page
⏱️Résumé in 20 seconds
In this article, we explain the LOG 200 and LOG 300 levels of detail used in our 3D models derived from laser scanner surveys.
- Unlike LOD or LOI, LOG focuses solely on the geometry of the elements.
- The LOG 200 is suitable for preliminary projects, while the LOG 300 is recommended for renovations or surveys of protected buildings.
- Concrete examples (windows, façades, roofs, etc.) illustrate the graphic differences between each level.
Why is the LOG central to our working method?
When we carry out a 3D scanner surveyThe main deliverable is a 3D geometric model faithful to the existing design.
This model is used by architects and engineers as a working basis, often for renovations, conversions or structural analyses.
Our method is based on purely graphic reading of elementsstructured at different levels of detail LOG.
Each LOG level corresponds to a compromise between precision and speed of execution. The higher the LOGThe more accurate and detailed the geometry, the longer the modelling time and the greater the file size. The opposite is true, a simpler LOG facilitates rapid exchanges and handling on less powerful machines. The choice of the appropriate level must therefore take into account not only the purpose of the projectbut also technical constraintsbudgetary and logistical considerations. This advance thinking is essential to ensure an efficient and sustainable BIM workflow.
Our expertise is based on the use of point clouds as a basis for modelling. These surveys capture every detail of the existing building, and we then adjust the geometric transcription according to the chosen LOG. This method guarantees continuity between the raw data from the scanner and the model that can be used by professionals. It also enables us to justify the accuracy of the model to the authorities or design offices. By integrating this logic from the outset, 3D Scan Bat offers technically sound models that are also recognised for their documentary reliability in official procedures.
Which LOG level should I choose, depending on the type of project?
Le LOG 200 level of detail is particularly suitable for preliminary projectsfor feasibility studies or volumetric estimates. It offers a simple, lightweight and quick-to-use representation, suitable for use when a moderate level of geometric precision is sufficient.
Le LOG 300 levelon the other hand, is better suited to renovation projectstransformations or any other process requiring a specific high geometric fidelityThis is particularly the case when the precision of the openings, the position of the joinery or the structure of the roof has an impact on the quality of the building. direct impact on the project.
⚠️ Please note: for enquiry files concerning listed buildings or buildings in protected areasparticularly in the case of complex façadesthe LOG 200 often proves insufficient. In such cases, the cantonal authorities require a more faithful modelling (LOG 300), allowing correct interpretation of the modelling, framing, proportions and volumes.
In the case of buildings with fine architectural elementssuch as mouldings, cornices, friezes or sculpted frames, a LOG 300 is becoming virtually indispensable. High-resolution 3D surveys make it possible to capture these details with a high degree of fidelity, making them easier for heritage departments to validate and integrate into renovation plans. On the other hand, for purely technical projects where external aesthetics are not a priority, a LOG 200 can be sufficient, reducing production times and costs while retaining the geometric information essential to the project.
At 3D Scan Bat, we consider the LOG as a planning tool itself. By defining the graphics level precisely from the outset, we help our customers to control their budget and schedule. An appropriate LOG avoids modelling unnecessary elements and concentrates effort on what has a real impact on the project. This rationalisation translates into shorter delivery times and more legible mock-ups. It's a guarantee of quality and efficiency, especially in projects where several people have to work together simultaneously.
Examples of LOG levels of detail applied to the 3D model
🔸 Window
- LOG 200 Simplified opening represented as a volume in the wall, without framing details or fanlight.
- LOG 300 model complete with frame, sub-frame, spandrel, transom and precise position within the thickness of the wall (inside, middle or outside).

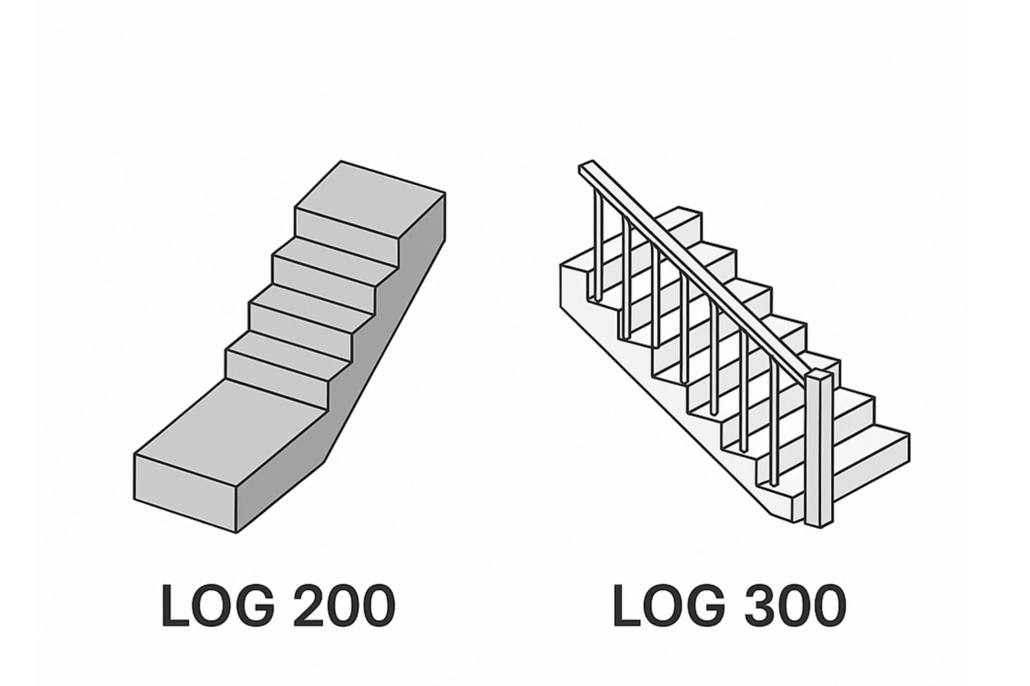

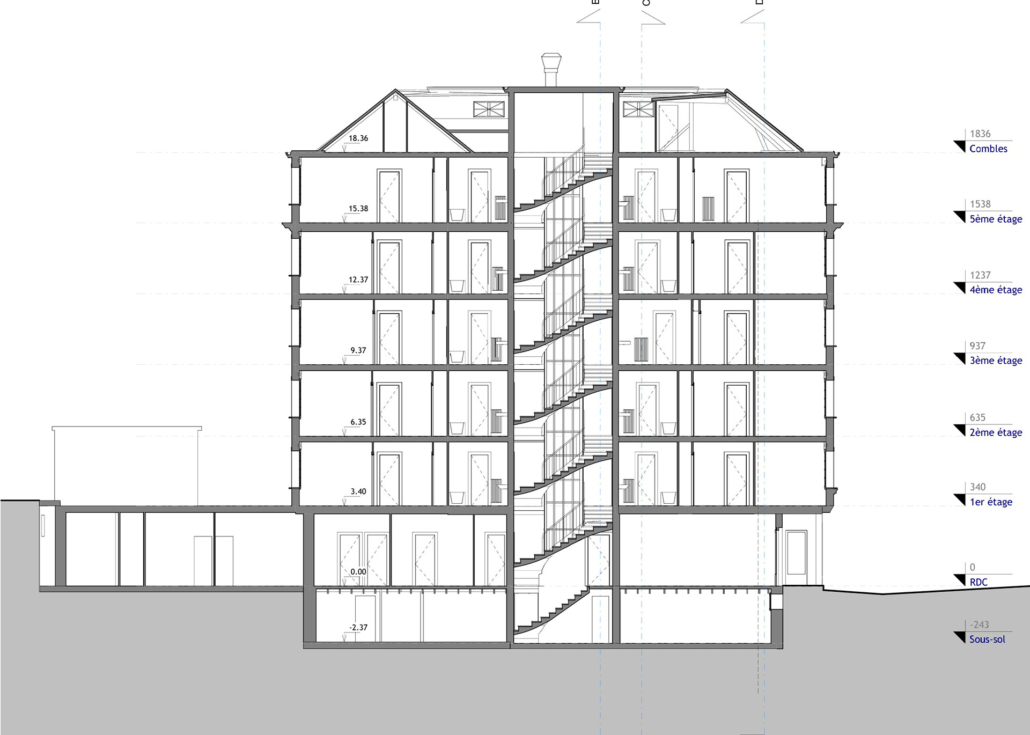

🔸 Staircase
- LOG 200 Schematic volume on a slope, with no details of steps or ramps.
- LOG 300 complete modelling with individual marketsThe staircase, stringers, balustrade, handrail and landing details.

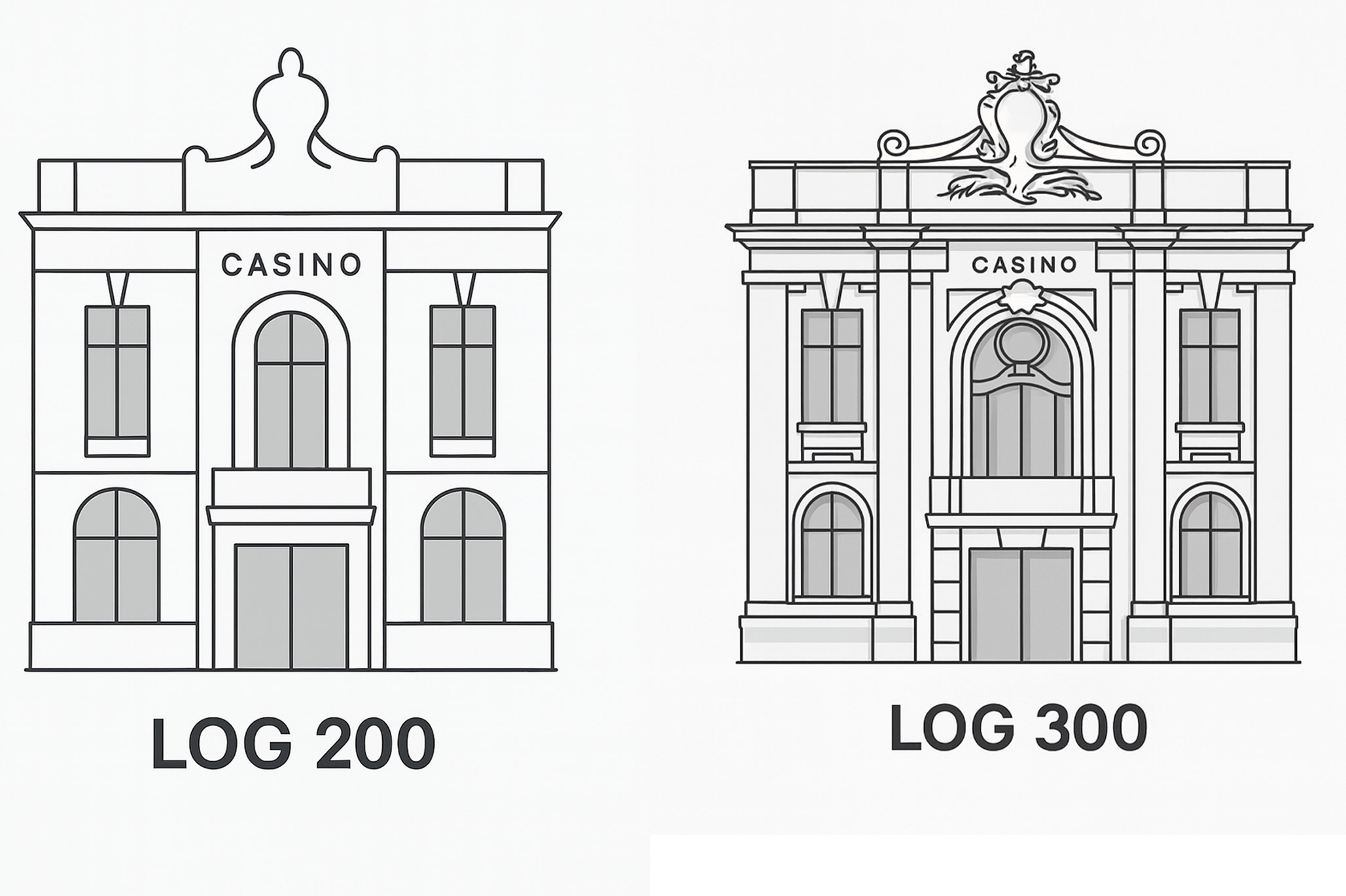

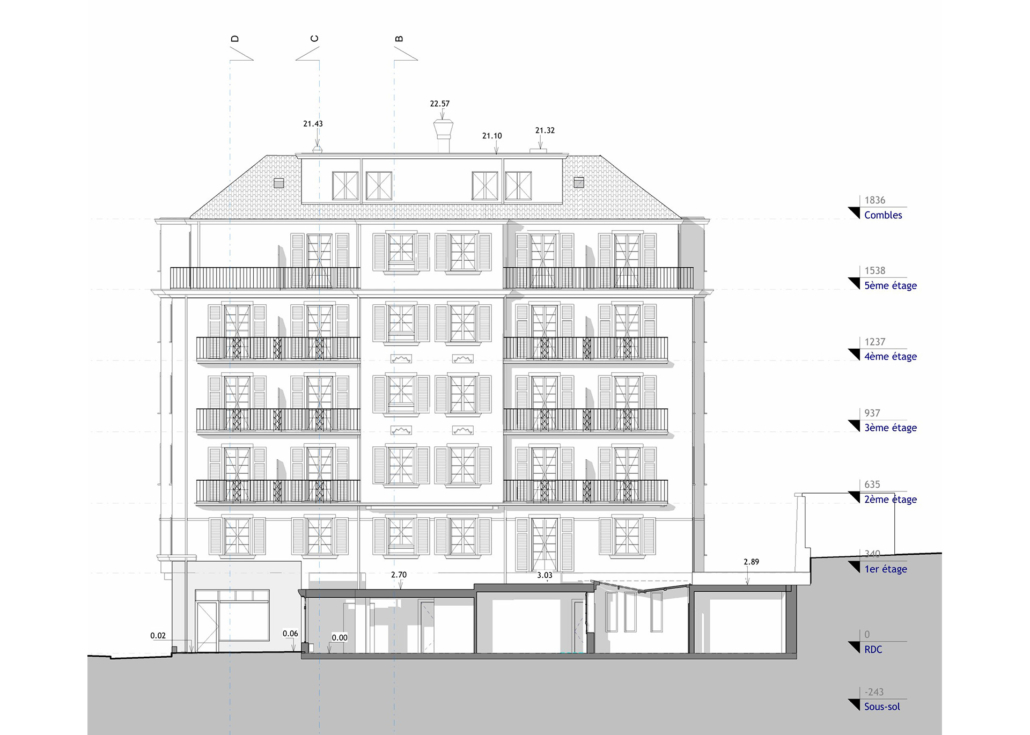

🔸 Façade
- LOG 200 Solid volumes with schematic openings (windows and doors represented by simple voids), without ornamentation.
- LOG 300 modenatures represented (frames, cornices, entablatures, main sculptures), precise proportions and visible relief.

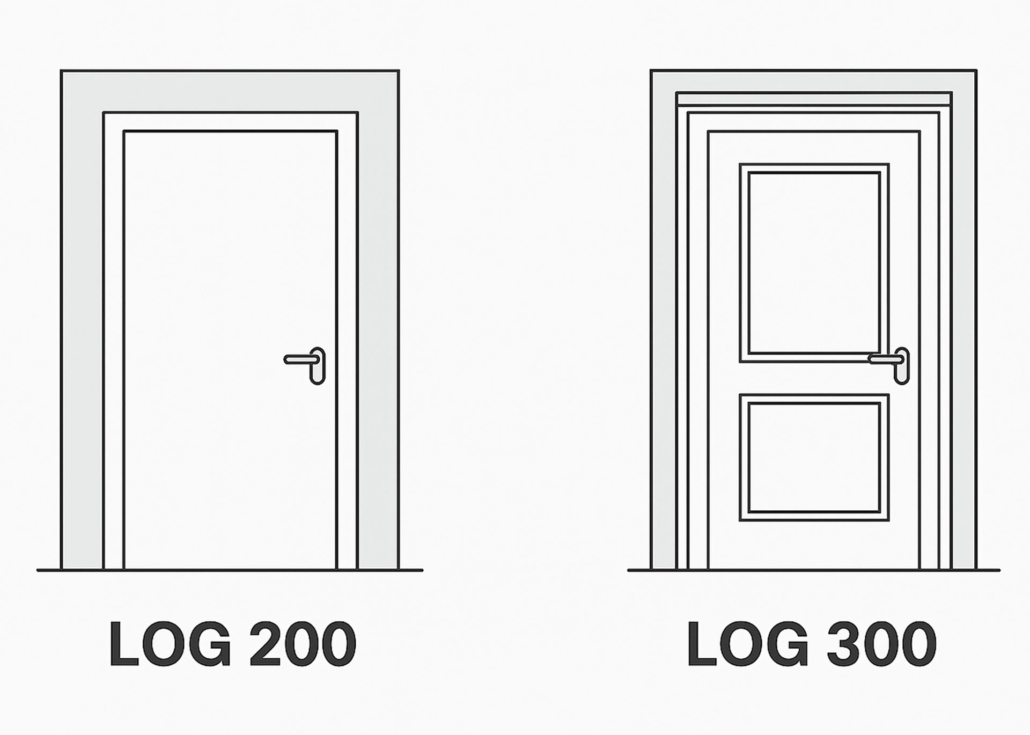

🔸 Internal door
- LOG 200 Door panel and frame shown simply, with no distinction between frame and sub-frame, and no recess depth.
- LOG 300 full performance with frame, sub-frame, recess, rebate, door leafvisible handle and precise position in the wall.
🔸 Roof
- LOG 200 General outline of the roof (e.g. two sloping sides), without details. The slopes are estimated or symbolic.
No representation of valleys, hips, eaves or chimneys. Roof overhangs are generally ignored. - LOG 300 detailed modelling with exact slopes measured on the point cloud, representation of the valleys, hips, ridges, verges, overhangs, cornices, any dormer windows.
Developed surfaces can be calculated, and a roof plan can be extracted with the slopes indicated in degrees.

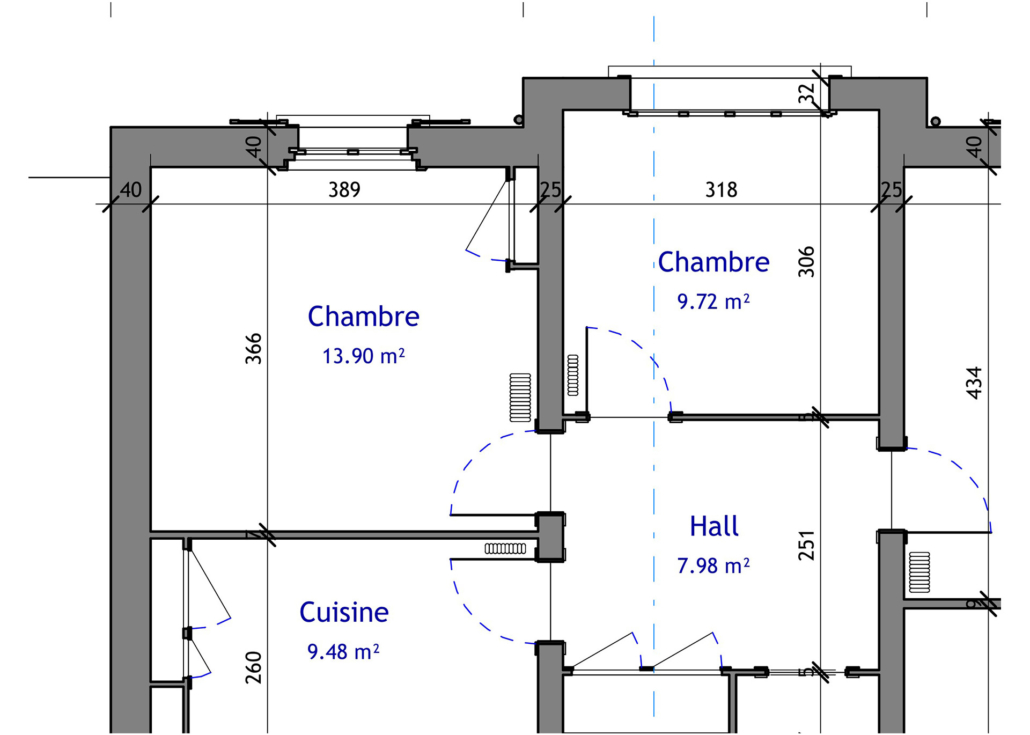

🧱 Position of elements in the wall
One of the key contributions of LOG 300 is the precise position elements (windows, doors, joinery) in the the thickness of the wall. This includes :
- L'internal or external alignment chassis
- L'modelled embrasure (depth, drop-offs)
- The supports, lintels and returns integrated
LOG: a purely geometric approach
Our models are deliberately light and soberwith an exclusive focus on geometry (LOG).
By default, we do not fill in :
- Materials (wood, PVC, steel...)
- Thermal, acoustic and fire performance
- Manufacturer data
Visit explicit requestand with customer documentation or a dedicated visit, we can complete the model with certain attributes of materiality or identification.
LOG and file performance
One of the major advantages of working in LOG is being able to control the weight and performance of BIM files. A model that is too detailed can quickly become heavy and difficult to handle, especially on standard workstations or when working remotely. On adapting the LOG to the contextThis ensures not only smooth reading, but also rapid exchanges between those involved. This optimisation is particularly crucial for complex projects where several disciplines need to work simultaneously on the same file, avoiding unnecessary slowdowns and wasted time.
Another advantage of our approach is optimising digital exchanges. The files generated are designed to be compatible with various software packages such as Revit, Archicad or AutoCAD. By controlling the LOG, we can control the size of the IFC or RVT files, which makes it easier to integrate them into collaborative BIM workflows. This agility is particularly useful in multi-actor projects, where several disciplines have to work on the same model. 3D Scan Bat always gives priority to fluidity and compatibility, so that the models delivered can be used immediately without wasting time with cumbersome conversions.
For what type of professional?
This approach is aimed primarily at :
- Architects for a reliable, clear and lightweight project base
- Technical offices to extract accurate 2D plans from the model
- Property experts and managers for geometric analysis or monitoring the evolution of a building over time
- Project owners for a quick view of the actual state of the existing building
LOG and built heritage: a special challenge
As part of projects to restore or renovate listed buildings, the mastering the LOG is of paramount importance. Decorative elements and modenature often need to be represented with great precision, as they are a prerequisite for files to be accepted by heritage departments. At 3D Scan Bat, we systematically calibrate our measurements to meet these requirements, using high-resolution 3D scanners and integrating the necessary details only where they are relevant. This method guarantees both accurate modelling and files that are light enough to remain usable.
LOG and interdisciplinary coordination
The choice of LOG directly influences the quality of coordination between the various disciplines involved in the project (architecture, structure, HVAC, electricity). A LOG too low may not be accurate enough to detect interference, whereas a LOG too high can drown teams in unnecessary detail. By defining a level of detail adapted to each phase of the project, it is possible to facilitate coordination meetings, anticipate technical conflicts and ensure that everyone involved has clear, reliable and usable information. The LOG thus becomes a strategic communication tool in BIM.
A clear, precise and effective method
Le LOG (Level of Geometry) is at the heart of our surveying and modelling practice.
It can be used to represent faithfully to the existing while maintaining a lightweight file structurereadable and usable without unnecessary overload.
It is a optimum balance between geometric accuracy, operational efficiencyand flexibility of adaptation according to the needs of each project.
The LOG is also a key to communication between all the parties involved in a project. By setting a clear framework from the outset, it avoids misunderstandings about the degree of accuracy expected and reduces unnecessary revisions. Our 3D surveys, translated into calibrated LOG modelsThis transparency is the key to transforming a 3D model into a genuine decision-making tool. It is this transparency that transforms a 3D model into a genuine decision-making tool. With 3D Scan Bat, each LOG is designed to ensure clarity and consistency.
In short, the LOG is much more than just a technical choice: it's a modelling strategy that directly influences the qualityThis is the key to the fluidity and efficiency of a BIM project. By clearly defining the level of geometric detail from the outset, you avoid overly large files, unnecessary data and costly adjustments along the way. At 3D Scan Bat, we tailor every survey to the LOG most relevant to your use, whether it's a simple preliminary design or extremely detailed modelling for the restoration of a listed building. This targeted precision is at the heart of our added value.
